Output Power Stereo (RMS)- Bridge Mode (RMS)
LS1200: 2x1200W@8ohm 2x1800W@4ohm 2x3000W@2ohm - 3600W@8ohm
LS1500: 2x1500W@8ohm 2x2300W@4ohm 2x3800W@2ohm - 4500W@8ohm
LS1800: 2x1800W@8ohm 2x2700W@4ohm 2x4500W@2ohm - 5400W@8ohm
LS2000: 2x2000W@8ohm 2x3000W@4ohm 2x5000W@2ohm - 6000W@8ohm
LS2200: 2x2200W@8ohm 2x3300W@4ohm 2x5500W@2ohm - 6600W@8ohm
LS2400: 2x2400W@8ohm 2x3600W@4ohm 2x6000W@2ohm - 7200W@8ohm
Frequency Response 20Hz-20kHz / ± 0.5dB
THD+N (20Hz-20KHz) ≤0.5% @ 8Ω1kHz
S/N Rate (20Hz -20 kHz) ＞110dB
Crosstalk (1KHz) ＞35dB
Slew Rate 20Vs
Damping Factor >5000 （8Ohm） 20Hz to 100Hz
Input Sensitivity 0.775V,1V,1.4V,
Input Impedance 20K Ω balance/ 10K Ω unbalanc
Cooling system 4pcs intelligent fan, from front to back exhaust cooling system
Input Connectors XLR Active balanced / pin1 gnd/pin 2+/pin3-
Output Connectors 2 Neutrik NL4 Sockets / 2 input posts
Protection Power-on buffer, overheating protection, short circuit protection, output DC Protection
Operating Voltage 110V/220V available
Circuit Class TD
Circuit 3U
Model Package(L×W×D) GrossWeight
LS1200 660×595×222mm 36kg
LS1500 660×595×222mm 38kg
LS1800 660×595×222mm 43kg
LS2000 705x595x222mm 48kg
LS2200 705x595x222mm 49kg
LS2400 760×595×222mm 52kg

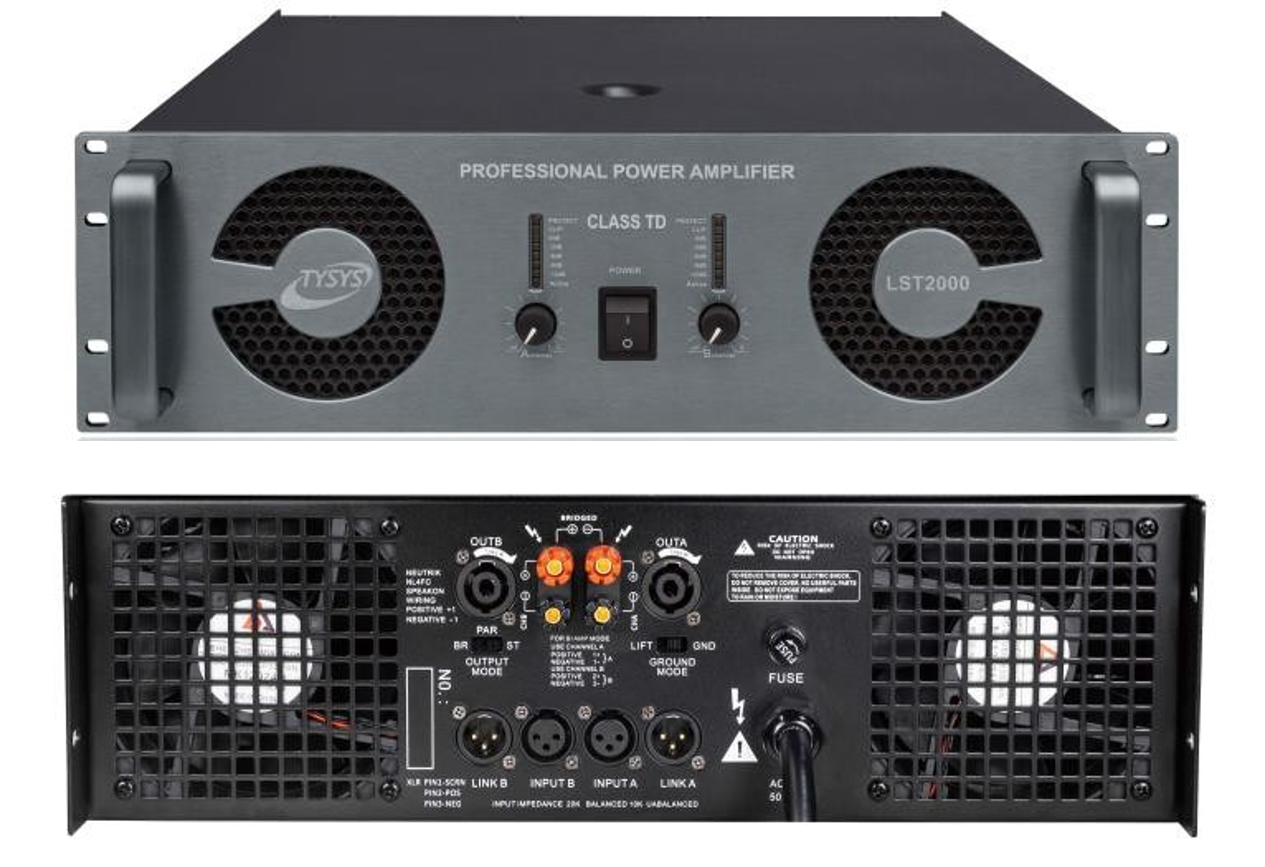

3U Class TD 2 channel power amplifier
◆ Class TD circuit, 2 channel, 3U ring transformer power amplifier, Provide 1200W,1500W, 1800W, 2000W ,2200W, 2400W for choose
◆ Using class A magnetic core high voltage ring transformer, large volume capacitor, makes the output current stronger, output power bigger."
◆ Use original America On transistor, assure low frequency strong, high frequency sweet & clear.
◆ PCB board is AI plug-in, it can assure products high stability.
◆. Perfect protection: Power-on buffer, overheating protection, short circuit protection, output DC protection and other functions.
◆ Support 2ohm impedance, Sensitivity: 0.775V/1V/1.4V.
◆ Applications: Large touring performance, Bar, Large stadium
