Output Power Stereo (RMS) - Bridge Mode (RMS)
DT4400: 4x400W@8ohm 4x600W@4ohm - 2x1200W @ 8ohm
DT4600: 4x600W@8ohm 4x900W@4ohm - 2x1800W @ 8ohm
DT4800: 4x800W@8ohm 4x1200W@4ohm - 2x2400W @ 8ohm
DT41000: 4x1000W@8ohm 4x1500W@4ohm - 2x3000W @ 8ohm
Height 4channel / 2U
Frequency Response 20Hz-20kHz / ± 0.5dB
THD+N (20Hz-20KHz) ＜0.05%
S/N Rate (20Hz -20 kHz) ＞110dB
Crosstalk (1KHz) ＞35dB
Slew Rate 20Vs
Damping Factor >500
Input Sensitivity 0.775V/ 1V/1.4V
Input Impedance 20K Ω balance/ 10K Ω unbalance
Cooling system 2pcs intelligent fan, from front to back exhaust cooling system
Input Connectors XLR Active balanced / pin1 gnd/pin 2+/pin3-
Output Connectors 4 Neutrik NL4 Sockets / 2 input posts
Protection Power-on buffer, overheating protection, short circuit protection, output DC Protection
Operating Voltage 110V/220V available / 50-60Hz
Circuit Class TD
Package (L×W×D) 570x550x180mm
Gross Weight 19.5kg - 22.5kg
2U Class TD 4 channel power amplifier
◆ Class TD circuit, 4 channel, 2U. Provide 400w, 600w, 800w, 1000w for choose.

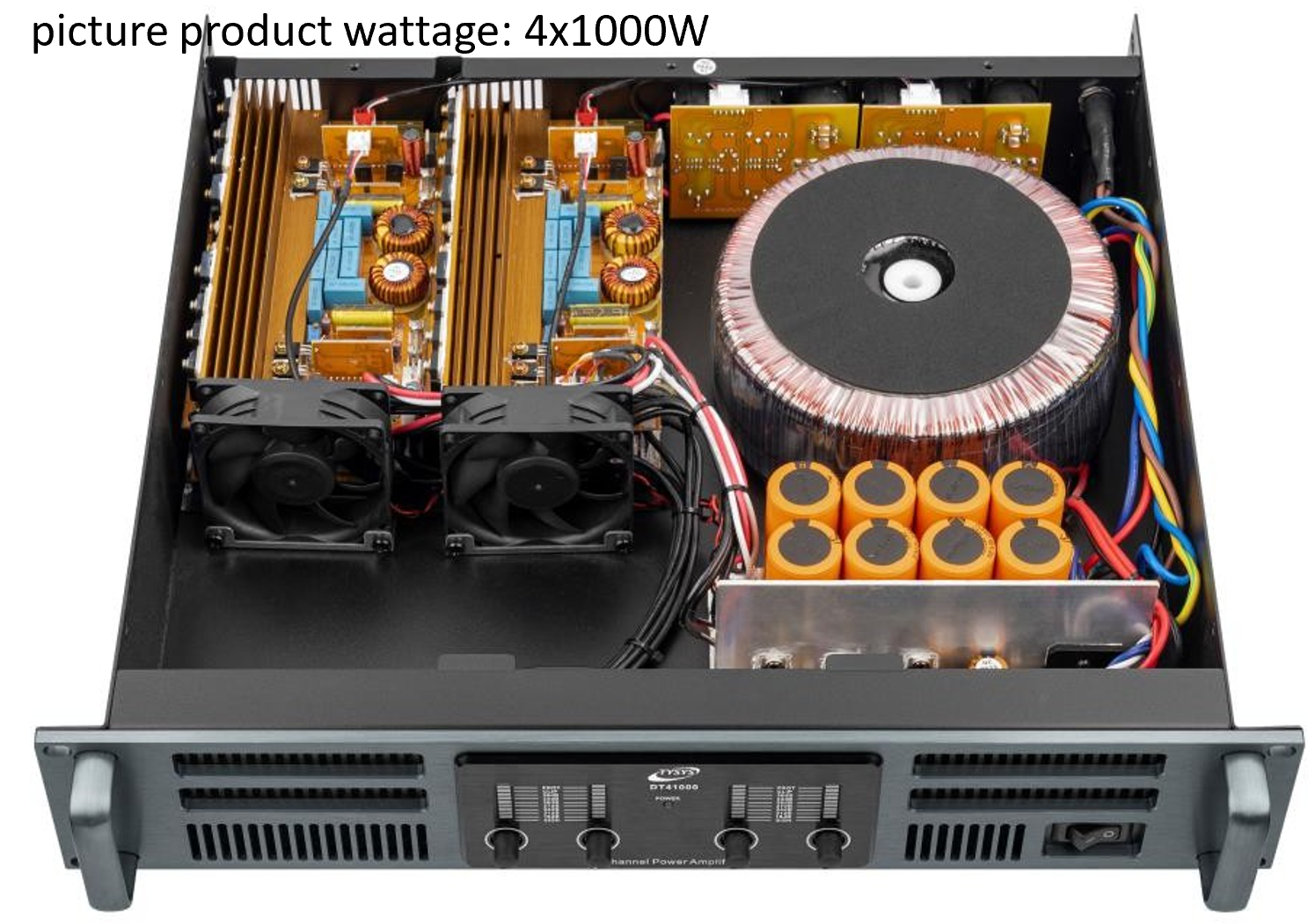

◆ High voltage ring transformer, large volume capacitor, makes the output current stronger, output power bigger.
◆ Use original America ON metal tube, assure low frequency strong, high frequency sweet & clear.
◆ PCB board is AI plug-in, it can assure products high stability.
◆Perfect protection: Power-on buffer, overheating protection, short circuit protection, output DC protection and other functions.
◆ Applications: Large touring performance, Stadium, Bar, Cinema
