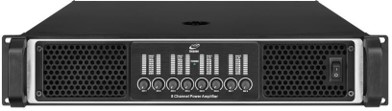

DK8300, DK8400, DK8500 - 8 channel power amplifier
DK8300, DK8400, DK8500 - 8 channel power amplifier
DK8300, DK8400, DK8500 - 8 channel power amplifier
DK8300, DK8400, DK8500 - 8 channel power amplifier

DK8300, DK8400, DK8500 - 8 channel power amplifier

  • Mã sản phẩm :
  • Thương hiệu :
Liên hệ:0977781110
Giá: Liên hệ

Chọn số lượng mua:

Ưu đãi chỉ có tại THẾ GIỚI ÂM THANH ÁNH SÁNG

TRA CƯỚC VẬN CHUYỂN
×
  • Thông tin ngân hàng

    STK:  03755232302  Mb bank, Nguyễn Thị Kiều Mỹ Linh

  • Mô tả

Output Power Stereo (RMS)

DK8300: 8x300W@8ohm 8x450W@4ohm

DK8400: 8x400W@8ohm 8x600W@4ohm

DK8500: 8x500W@8ohm 8x750W@4ohm

Height                                     8channel /2U

Frequency Response               20Hz-20kHz / ± 0.5dB

THD+N  (20Hz-20KHz)        ＜0.05%

S/N Rate (20Hz -20 kHz)       ＞110dB

Crosstalk (1KHz)                    ＞35dB

Slew Rate                                20Vs

Damping Factor                      >500

Input Sensitivity                      1V

Input Impedance                     20K Ω balance/ 10K Ω unbalance

Cooling system                       4pcs intelligent fan, from front to back exhaust cooling system

Input Connectors                    XLR Active balanced / pin1 gnd/pin 2+/pin3-

Output Connectors                  8 Neutrik NL4 Sockets / 8 input posts

Protection                                Power-on buffer, overheating protection, short circuit protection, output DC Protection

Operating Voltage                   110V/220V available / 50-60Hz

Circuit                                     Class TD

Package  (L×W×D)                710x585x180mm

Gross Weight              28.5kg ;  30.5kg;    32.5kg

2U Class TD 8 channel power amplifier

◆ Class TD circuit, 8channel, 2U. Provide 300w, 400w, 500w for choose.

◆ High voltage ring transformer, large volume capacitor, makes the output current stronger, output power bigger.

◆ Use original America ON metal tube, assure low frequency strong, high frequency sweet & clear.

◆ PCB board is AI plug-in, it can assure products high stability.

◆Perfect protection: Power-on buffer, overheating protection, short circuit protection, output DC protection and other functions.

◆ Applications: Large touring performance, Stadium, Bar, Cinema
